Bed Elevator

Fulfill equal carrying ia harmonious space
Schumacher bed elevators not only transport passengers, but also have special and strict requirements for special function and performance of the elevator. Schumacher bed elevators precisely control the speed of the elevator, run smoothly and comfortable.
Schumacher series hospital elevators emphasize human-oriented design to fully optimize
the car structure, satisfy customer requirements. Give passengers a serene elegant space
Schumacher series hospital elevator has its unique design concept, creativity and harmony of the hospital environment, clean and bright space give passengers a comfortable environment for the patient but also adds a bit of confidence back to health.
Group control management system, intelligent dispatching
Schumacher bed elevator centralized control of multiple elevator, system within all the time to calculate which elevator is the most rapid economic and reasonable to meet response signal, with the fastest speed, maximum efficiency to provide doctors and patients dispersion elevator. Increase elevator operational efficiency, reduce patient waiting time to adapt to the special needs of the hospital
Anti-magnetic interference, better adapted to the use Of modern medicine
3G mobile communication is perfect combined with internet, real-time acquisition computer board, inverter data, wireless remote transmission to achieve Internet remote monitoring.
Special functions for the handicapped fulfill equal carrying in a harmonious space
Schumacher bed elevator efforts to create equality accessible space for people will incorporate the needs of disable people into the elevator design concept, not only mark braille on the button but also the control box inside the car to take a cross-loaded manner, 1 meter from the car bottom, very convenient for disable people, while not affect the ordinary

Stretcher Elevator

Take the elevator rescue mission
Care for the health and safety of you and others, Schumacher together with you to achieve social responsibility. For the building design of elevator in case of emergency rescue, rescue use convenient.
Elevator adopts special space design, suitable for placing a stretcher and beds, especially for rescue work. For the relief of the elevator to tailor the special function and high reliability of special master control system, emergency use, can quickly form a barrier free relief channel, between the free flow of each floor, the successful completion of the rescue work. Applicable to residential buildings, schools, commercial buildings, hotels, shopping malls, entertainment and other public places
Convenient Stretcher, Protect The User Security
The car can be placed in a medical stretcher vehicle, the intelligent wheelchair, a small cart stretcher bed, to meet the special requirements of users, to facilitate people's life.

Rescue system
Direct service rescue function:
Any floor start "rescue' function, can quickly reach the destination. Rescue function is activated, the elevator will no longer accept other call request, forming a fast dedicated direct channel, complete the delivery task in the short time, after the completion of the task, the system automatically resume normal use.
Emergency power supply system
 For the completion of the rescue mission, the elevator can be equipped with rescue special emergency system, once blackout, start the emergency power supply system, the nearest floor elevator door, completed the rescue work
Specification & Drawing

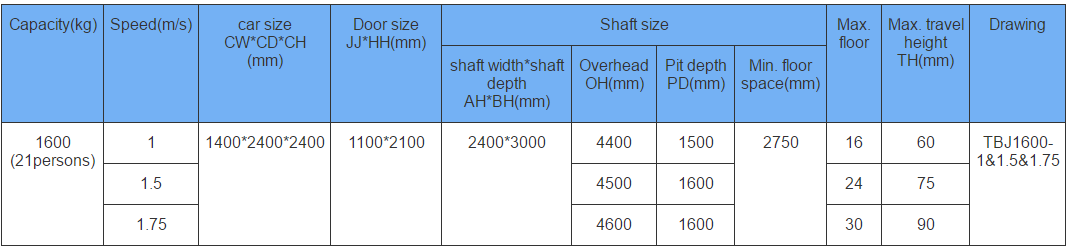

TBJ Download Drawing

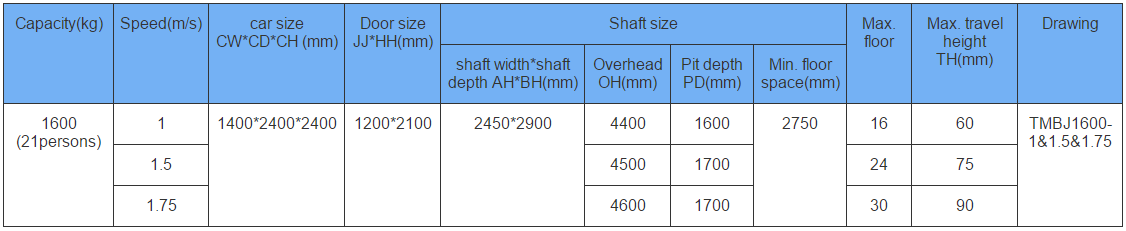

TMBJ Download Drawing

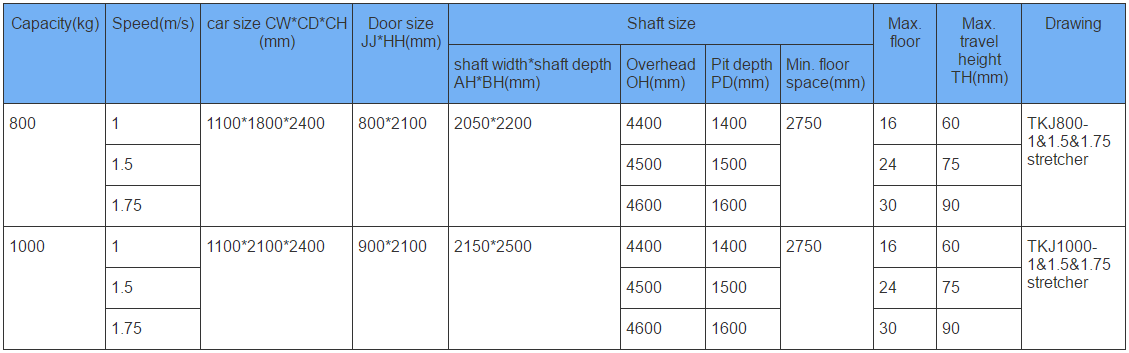

TKJ Stretcher Download Drawing
No.FunctionFunction description
1VVVF driveMotor rotating speed can be precisely adjusted to get smooth speed curve in lift start, travel and stop and gain the sound comfort.
2VVVF door operatorMotor rotating speed can be precisely adjusted to get the more gentle and sensitive door machine start/stop
3Inspection operationWhen the lift enters into inspection operation, the car travels at 0.25m/s inching running.
4Arrive auto openElevator slow down to leveling, auto open
5Express door closingWhen the lift stops and opens the door, press door-shut button, the door will be closed immediately.
6Control of door open timeAfter the lift arrive and automatic open, self-closing delay some time. Such as when no call signal stops the layer registration delay of 2.5 seconds, and if the call signal delay 4 seconds. This delay can be set in the parameters.
7Reopen with hall callIn the door shutting process, pressing the hall call button can reopen the door.
8Emergency car lightingEmergency car lighting automatically activated once power failure.
9Overload stopWhen the car is overload, the buzzer rings and the lift remains at rest in the same floor.
10Car arrival gingArrival gong in the car top announces passengers the car's arrival.
11Car ventilation, light automatic shut offIf there is no calling or command signal within the stipulated time, the car fan and lighting will be automatically closed in order to save the energy.
12Photocell protectionIn the door open and shut period, the door protection device of infrared ray that covers the whole door height is used to probe both the passengers and objects.
13Fire alarmIn emergency conditions, if bell Button on car operation panel is continuously pressed, electric bell rings on top of the car.
14Fire emergency returnIf you start emergency switch in main landing, all the callings will be cancelled. The lift directly and immediately drives to the designated rescue landing and automatically opens the door.
15Five way intercomCommunication amid car, car top, lift machine room, well pit and rescue duty room through walkie-talkie.
16Floor and direction indicatorThe car shows the lift floor location and current travel direction.
17Floor and direction indicator in hallThe landing shows the lift floor location and current travel direction.
18Over-leveling and limit protection deviceThe device can be effectively prevented the elevator hit the top or bottom when the elevator runaway, make the elevator more secure.
19Remote shutdownVia the key switch, the elevator can be summoned to the base station (after completion of the service) and automatically out of service.
20Anti-stall timer protecionThe lift stops operation due to slippery traction wire rope.
21Down over-speed protectionWhen the lift downs 1.2 times higher than the rated speed, this device will automatically cut off control mains, the motor running so as to atop lift down at over-speed. If the lift continues to down at over-speed, and the speed is 1.4 times higher than rated speed, safety tongs act to force the lift stop in order to ensure the safety.
22Fault self-diagnosis recordWith the help of this record function, faults can be restored rapidly so that the lift can remove in a short time.
